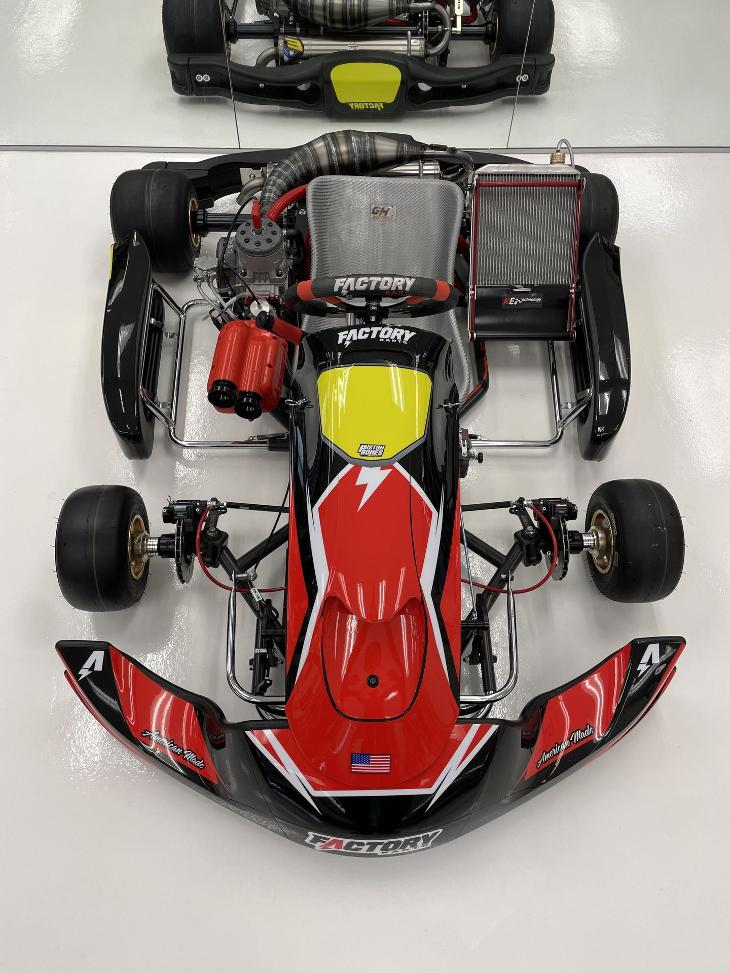

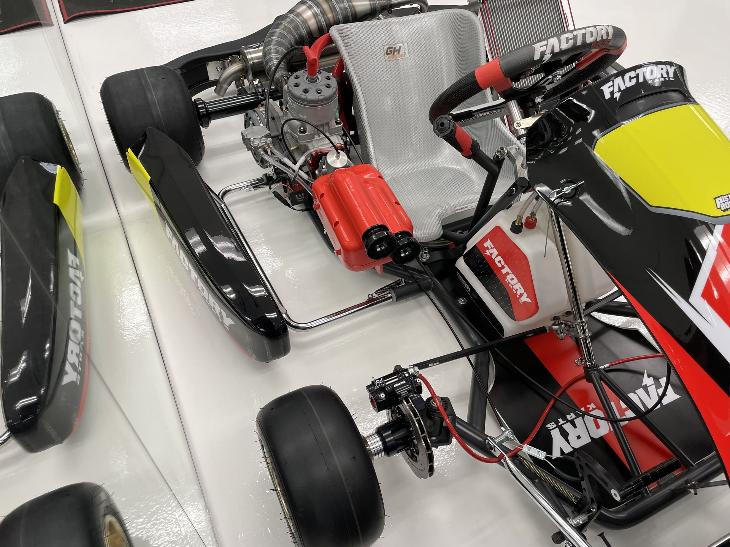

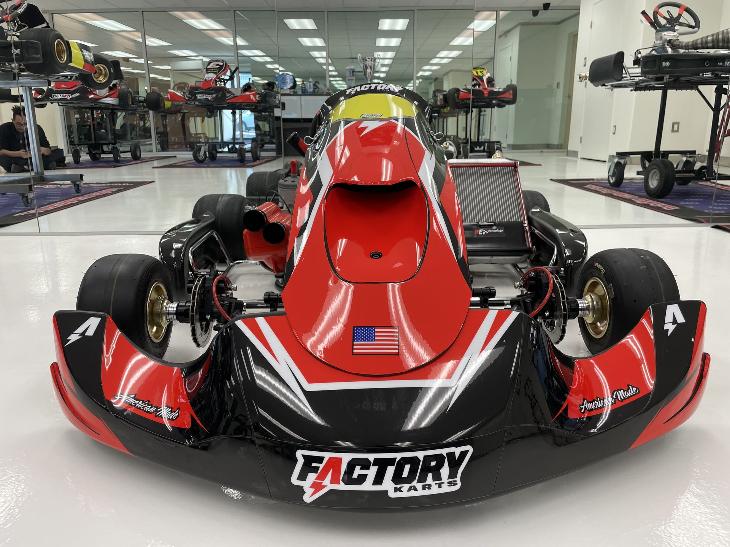

CHASSIS:
2023 full size shifter chassis
All American ISO 4130 Cr-Mo Tubing, 1.25" OD; Highest Quality chassis material on the market
Special Chassis geometry, designed and developed by Billy Musgrave to take advantage of the properties of American Steel
bent utilizing a cnc-tubing bender, we then cut, miter, & prepare the tubes at our facility here in Riverside, Ca
The frames are all tig-welded by hand in our own chassis fixtures
Chassis includes all Magnesium Wheels and hubs for the best heat dissipation and fast laps deep into the race
Proprietary rear bearing cassette design, that reduces rear tire wear, as well as incorporates maximum adjustability
One-of -a-kind cnc Aluminum fuel tank holder with sliding steering wheel position
Unique seat mounting solutions, to improve the adjustability of the seat position without drilling more holes
Technological improvements around all of the bracketry to drastically extend the life and reliability of our chassis

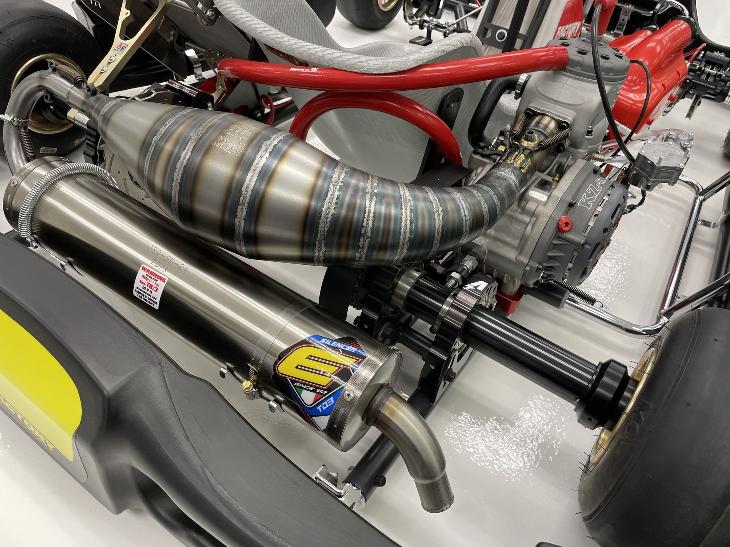

ENGINE: various engine kit options as follows
| ENGINE | Strokes/CC | Max Power | Max RPM | Max MPH | Start | Fuel | Piston Life |
| FZ-85 | 2-stroke 85 | 24hp | 13,000 | 75 | Manual | VP ms98L | 15+ Hours |
| FZ-125 | 2-stroke 125 | 46hp | 13,000 | 90+ | manual | VP ms98L | 15+ hours |
| IAME KZ 'SCREAMER IV' | 2-stroke 125 | 45hp | 15,000 | 100+ | Manual | VP ms98L | 5-8 Hours |
| TM KZ 'R2' | 2-stroke 125 | 45hp | 15,000 | 100+ | MANUAL | VP MS98L | 5-8 Hours |
| ROK SHIFTER | 2-stroke 125 | 38hp | 14,500 | 90+ | Manual | VP MS98L | 6-10 Hours |
| IAME 175 SSE | 2-stroke 175 | 46hp | 14,000 | 100+ | Manual | VP MS98L | 15-20 Hours |
Each Factory Kart comes standard with a GreyHound racing seat. The seat is manufactured in fiberglass and engineered using the latest ergonomic techniques. It also presents a controlled torsional stiffness. Made with a high quality silver woven material, the GreyHound seat provides great flexibility.
to complete your seat selection:
Review the below "Seat Size Chart" to determine your GreyHound racing seat sizing
Seat Size Chart:
If "Yes, please add tires to my order" option is selected, we will add a set of four (4) EVINCO tires to your order. Below is the list of tires models that come standard with each kart based on engine & chassis selection:
All kid karts Four (4) - Evinco blue tires 4.6
All cadet karts Four (4) - Evinco blue tires 4.6
Daytona 190cc kart Two (2) - Evinco blue tires 4.6
KA100 Kart Two (2) - Evinco blue tires 7.1
All full size karts Two (2) - Evinco red tires 4.6
Two (2) - Evinco red tires 7.1
If you would like to purchase a non-standard tire combination and/or additional tires, please note that we provide the option to purchase EVINCO tires individually. your custom tire selection can be added to cart separately from our shop.
